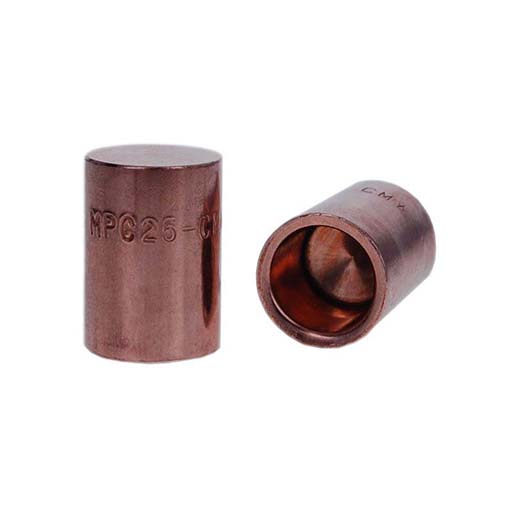

CMW Female Cap - 0.88 in

Linde Part #: CMWMPC25  /

Add to List Add to List


Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

Features

  • The overall length is 0.8800 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.625 IN

    •

    Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

    RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

    Features

  • The overall length is 0.8800 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.625 IN

    • Brand CMW Inc
    Accessory Type Female Cap
    Overall Length 0.88 in
    Overall Width 0.625 in
    MFG 2-MPC25

    Specifications
