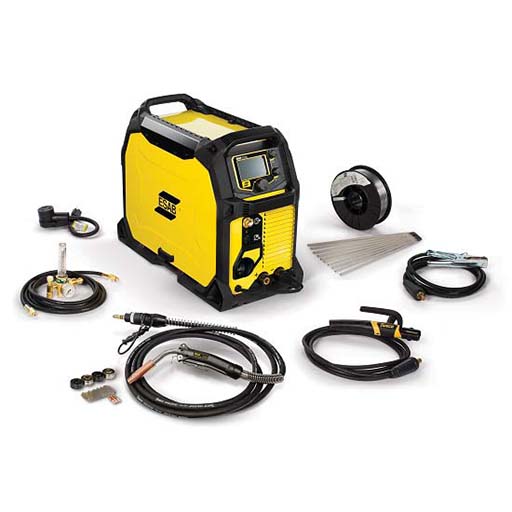

ESAB Rebel EMP 235IC Multi-Process Welder

Linde Part #: ESA0558012702 | Manufacturer's Part #:0558012702 /

1-800-225-8247
Ship To change location
Notify me when available

ESAB Rebel EMP 235IC Multi-Process Welder

Introducing Rebel EMP 235ic - the next level Rebel welding machine that offers TRUE multi-process performance in a portable package. When it comes to getting around and getting work done, Rebel EMP 235ic is second to none. It is the most mobile welder in its class and has the power and performance to crush even the most demanding jobs.

Features

True Multi-Process – excellent performance on MIG, TIG and STICK.

Unmatched Portability – weighing in at 53 lbs. (24 kg) with dual voltage capability and 4 handle roll cage. Detach the Rebel 235ic from its cart and tackle any job around the shop or out at the job site.

Power to Perform – have the confidence with Rebel 235ic to run the full range of .035 in. (0.9 mm) wire – short arc and spray transfer. Also up to .045 in. (1.2 mm) solid wire and up to .052 in. (1.4 mm) cored wire. Plus, rods up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm)

sMIG Technology - innovative "smart-MIG" feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.

Specifications

Brand	ESAB
MIG Welding Maximum Output Current	235 A
For Maximum Material Thickness	1/2 in
Maximum Wire Diameter	1.4 in
Minimum Wire Diameter	0.8 in
Overall Depth	26-1/2 in
Overall Height	11-1/2 in
Overall Width	19-1/2 in
Plug Type	6-50P
Stick Welding Maximum Output Current	210 A
Stick Welding Minimum Output Current	90 A
Voltage	120 V, 208 V, 230 V
Maximum Wire Feed Speed	700 in/min
MFG	0558012702
MIG Welding Minimum Output Current	120 A
Minimum Wire Feed Speed	60 in/min
Power Cord Length	10 ft
Standards	CSA E60974-1-00, IEC60974-1, UL60974-1
TIG Welding Maximum Output Current	240 A
TIG Welding Minimum Output Current	130 A
UNSPSC	23271408

Brand: ESAB
MIG Welding Maximum Output Current: 235 A
For Maximum Material Thickness: 1/2 in
Maximum Wire Diameter: 1.4 in
Minimum Wire Diameter: 0.8 in
Overall Depth: 26-1/2 in
Overall Height: 11-1/2 in
Overall Width: 19-1/2 in
Plug Type: 6-50P
Stick Welding Maximum Output Current: 210 A
Stick Welding Minimum Output Current: 90 A
Voltage: 120 V, 208 V, 230 V
Maximum Wire Feed Speed: 700 in/min
MFG: 0558012702
MIG Welding Minimum Output Current: 120 A
Minimum Wire Feed Speed: 60 in/min
Power Cord Length: 10 ft
Standards: CSA E60974-1-00, IEC60974-1, UL60974-1
TIG Welding Maximum Output Current: 240 A
TIG Welding Minimum Output Current: 130 A
UNSPSC: 23271408
