ESAB Renegade ES 300i Stick/TIG Welder, 230 - 460 Volts

Linde Part #: ESA0445100881 | Manufacturer's Part #:0445100881 /

1-800-225-8247
Ship To change location
Notify me when available

ESAB Renegade ES 300i Stick/TIG Welder, 230 - 460 Volts

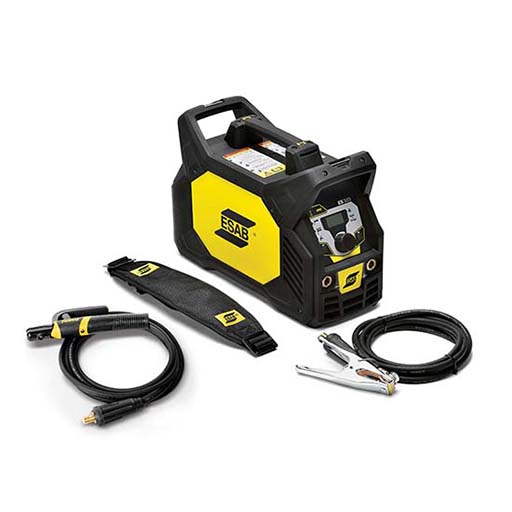

A small but stout 15 kg (33 lb) unit, Renegade ES 300i is a groundbreaking combination of PORTABILITY and POWER. It has the highest power to weight ratio in its class designed to virtually go anywhere on the job site. Renegade ES 300i handles single- and three-phase power from 208V to 460V automatically, and puts out 5 to 300 Amps. The Renegade ES 300i package includes power supply, 3m (10 ft) input cable, shoulder strap and 2 male 50m OKC connectors.

Features

Highest power to weight ratio in its class weighing in at 15 kg (33 lb) and producing 300 A at 40% duty cycle. Combined with its rugged case, Renegade is ideal for the most extreme environments in the industry.

Small, lightweight system can virtually go anywhere on the jobsite. Its three handle design makes it easy for transportation and maneuvering through manholes and other hard to reach areas.

Excellent performance on 6010 (cellulosic) electrodes and additional functionally to tailor Arc Force for a softer or crisper arc. With an excellent TIG operational range from 5 to 300 A, you'll have the confidence to tackle a broad range of material thicknesses.

Intuitive interface – the machine's digital readout display, along with large buttons with excellent feedback and controls, make it easy to set parameters and read them from a distance.

Cable management – an integrated latch system helps control cables so they can be secured to the machine, making it easy to pack up and go.

Specifications

Brand	ESAB
Overall Depth	18.1 in
Overall Height	7.9 in
Overall Width	12.6 in
Plug Type	OKC
Stick Welding Maximum Output Current	300 A
Stick Welding Minimum Output Current	250 A
Voltage	230 V, 480 V
MFG	0445100881
Power Cord Length	3 m
Standards	CE, CSA
TIG Welding Maximum Output Current	300 A
TIG Welding Minimum Output Current	200 A

Brand: ESAB
Overall Depth: 18.1 in
Overall Height: 7.9 in
Overall Width: 12.6 in
Plug Type: OKC
Stick Welding Maximum Output Current: 300 A
Stick Welding Minimum Output Current: 250 A
Voltage: 230 V, 480 V
MFG: 0445100881
Power Cord Length: 3 m
Standards: CE, CSA
TIG Welding Maximum Output Current: 300 A
TIG Welding Minimum Output Current: 200 A

ESAB Renegade ES 300i Stick/TIG Welder, 230 - 460 Volts
