ESAB Round Backup Tape - Ceramic | 693000283

Linde Part #: ESA693000283 Manufacturer's Part #:

693000283

 /


How do I buy this?

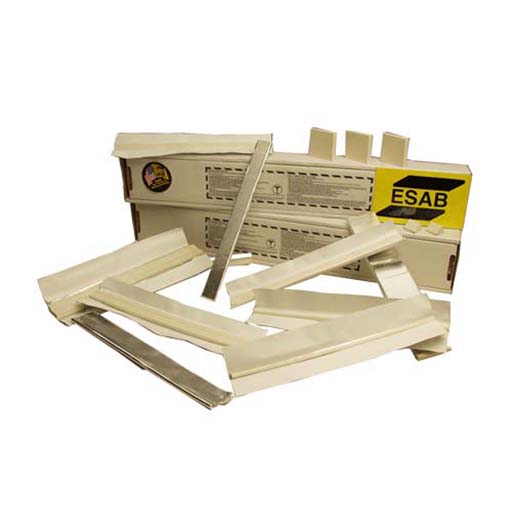

ESAB Round Backup Tape - Ceramic

Individual tiles are assembled on an adhesive tape which can then be fitted to any specific length. Individual tiles can also be purchased and used in conjunction with a metal tracking system. Once attached to the reverse side of the weldment, preheat can be utilized. The adhesive characteristics permit the weld to be preheated up to 500ºF (270ºC) without releasing. Following the weld completion, both the tiles and tape are easily removed, exposing a consistent uniform weld bead.

Features

  • Individually sized and cut to a specific length, these disposable tiles are flexible and easily adaptable to many different weld configurations. The cost savings potential makes this an attractive alternative to arc gouging and rewelding full penetration welds.
  • The composition of this non-metallic material is an ideal alternative to steel or copper backing bars. The quality and consistency within the ceramic composition eliminates any concern for metallurgical mismatch in either the base material or weld metal. The density of such a material not only helps support and define the molten weld metal, but more importantly, effectively resists moisture pick-up that can seriously affect the weld deposit.

  •

    ESAB Round Backup Tape - Ceramic

    Individual tiles are assembled on an adhesive tape which can then be fitted to any specific length. Individual tiles can also be purchased and used in conjunction with a metal tracking system. Once attached to the reverse side of the weldment, preheat can be utilized. The adhesive characteristics permit the weld to be preheated up to 500ºF (270ºC) without releasing. Following the weld completion, both the tiles and tape are easily removed, exposing a consistent uniform weld bead.

    Features

  • Individually sized and cut to a specific length, these disposable tiles are flexible and easily adaptable to many different weld configurations. The cost savings potential makes this an attractive alternative to arc gouging and rewelding full penetration welds.
  • The composition of this non-metallic material is an ideal alternative to steel or copper backing bars. The quality and consistency within the ceramic composition eliminates any concern for metallurgical mismatch in either the base material or weld metal. The density of such a material not only helps support and define the molten weld metal, but more importantly, effectively resists moisture pick-up that can seriously affect the weld deposit.

  • Brand ESAB
    Accessory Type Round Backup Tape
    Material Ceramic
    MFG 693000283
