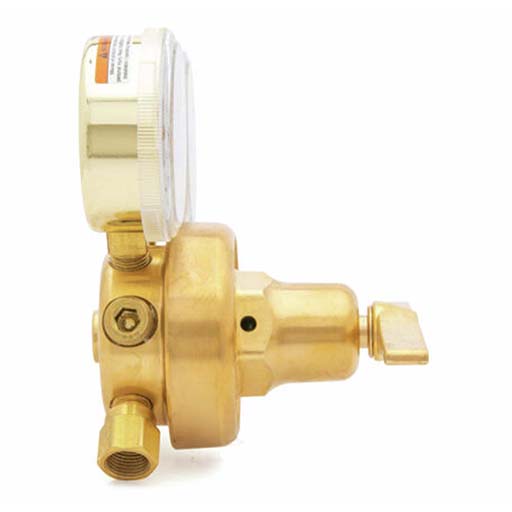

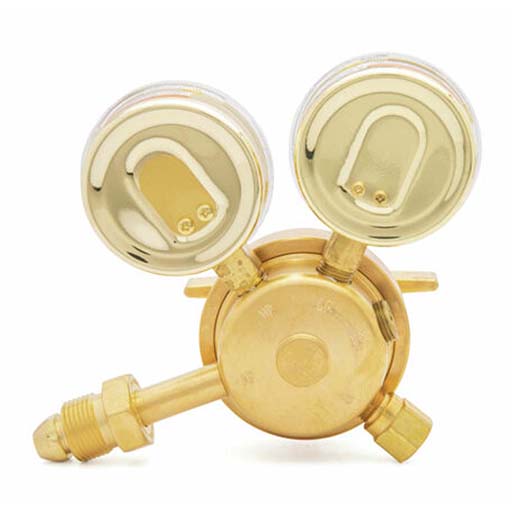

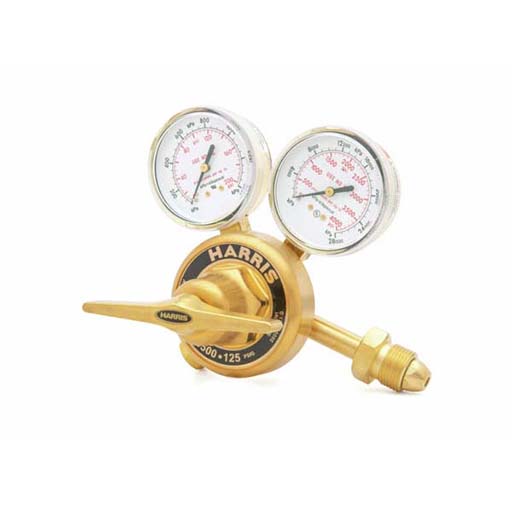

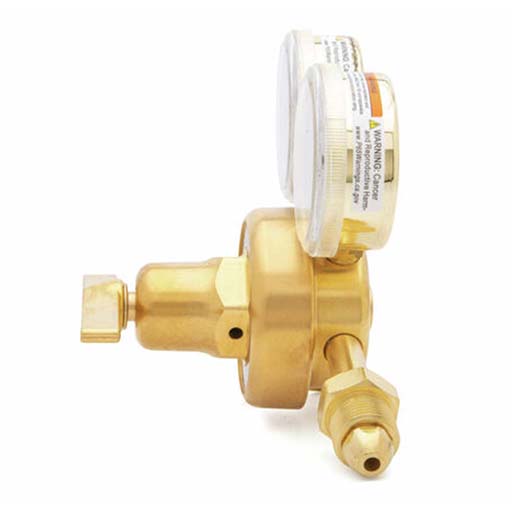

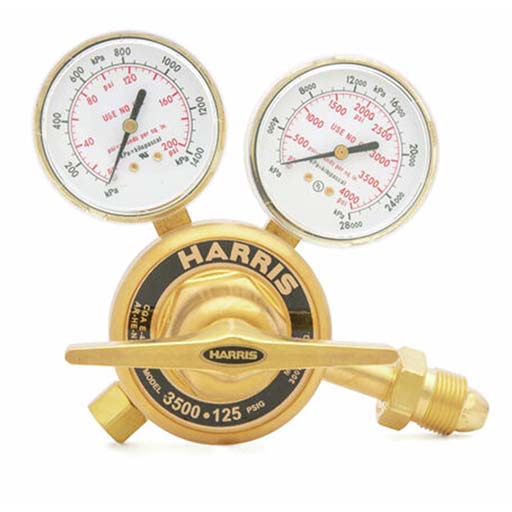

Harris Gas Regulator - 200 psi - Argon - Helium - Nitrogen

Linde Part #: HAR3003516  /

Add to List Add to List


Harris Gas Regulator - 200 psi - Argon - Helium - Nitrogen

Features

  • Ideal for special high flow cylinder applications
  • Easy-to-operate brass T screw bar adjusting handle
  • 2.5 in Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • This model has dual outlet ports

    •

    Harris Gas Regulator - 200 psi - Argon - Helium - Nitrogen

    Features

  • Ideal for special high flow cylinder applications
  • Easy-to-operate brass T screw bar adjusting handle
  • 2.5 in Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • This model has dual outlet ports

    • Brand Harris Products
    Body Material Brass
    Gas Service Argon, Helium, Nitrogen
    Inlet Connection CGA-680
    Maximum Inlet Pressure 5500 psi
    Maximum Outlet Pressure 400 psi
    Minimum Outlet Pressure 200 psi
    Number of Stages Single
    Outlet Connection 5/8-18 RH
    Product Type Gas Regulator
    Diaphragm Material Neoprene
    MFG 3003516
