Miller Electric Maxstar 161 STL 120-240V, X-Case, Contractor Package

Linde Part #: MIL907710001 Manufacturer's Part #:907710001  /

How do I buy this?

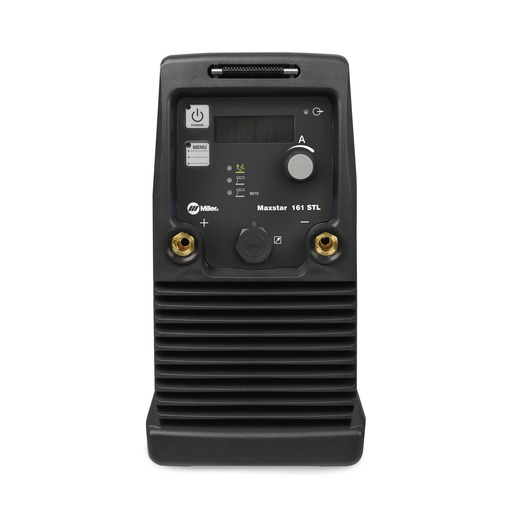

Miller Electric Maxstar 161 STL 120-240V, X-Case, Contractor Package

Best of class - Provides maximum portability and performance in the most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.

What's Included

  • Maxstar 161 STL
  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V
  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
  • Adjustable handle/shoulder strap
  • 12.5 ft. (3.8 m) Weldcraft A-150 TIG torch
  • Regulator/flow gauge and gas hose
  • AK2C accessory kit
  • Protective Miller X-Case (301429)
  • Quick Reference Guide


  • Use on 120 AND 240 Volt Input Power Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.
  • Compact Design Allows for Great Portability Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based Stick machine can be taken from location to locations
  • Low Power Draw By utilizing an inverter-based power source in the Maxstar 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.
  • Easy-To-Use 1. Turn power on; 2. Select process: Lift-Arc TIG, Stick, or 6010 Stick; 3. Set amperage; Then weld! It's as easy as 1, 2, 3.
  • 6010 Stick Electrode Capability Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
  • No More "Sticky" Electrodes With Miller's Adaptive Hot Start technology, you no longer have to worry about those difficult-to-strike electrodes
  • Conserve Your Electrodes With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode
  • No Need For a Gas Valve on your TIG Torch With a built-in gas solenoid, the Maxstar 161 eliminates the need for a bulky TIG torch with a gas valve
  • 5 Amp TIG Capability Allows users to weld thinner materials than other machines in this category

Not Included

  • Regulator/flow gauge and gas hose
  • Remote Control (6-pin)


  • Weldable Materials Steel, Stainless Steel
  • Input Voltage 110/115/120 V; 220/230/240 V
  • Input Phase 1-Phase
  • Input Hz 50/60 Hz
  • Current Type DC
  • Weld Output CC
  • Warranty 3 Years
Brand Miller Electric
Amperage 160 A
Applicable Material Stainless Steel, Steel
Frequency 50 Hz, 60 Hz
Overall Depth 13-1/2 in
Overall Height 10.3 in
Overall Width 5.6 in
Phase Single-Phase
Remote Connection Type Dinse
Stick Welding Maximum Output Current 160 A
Stick Welding Minimum Output Current 90 A
Voltage 240 V
MFG 907710001
Power Cord Length 6-1/2 ft
Subcategory Welding Equipment
UNSPSC 23271408
