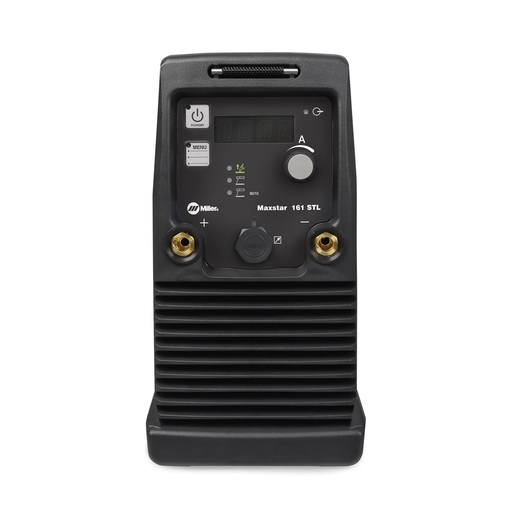

Miller Electric Maxstar 161 STL 120-240 V Weld er

Linde Part #: MIL907710 | Manufacturer's Part #:907710 /

1-800-225-8247
Ship To change location
Notify me when available

Miller Electric Maxstar 161 STL 120-240 V Weld er

Best of class - Provides maximum portability and performance in the most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.

Features

Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.

Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this

Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based TIG/Stick machine can be taken from location to location.

By utilizing an inverter-based power source in the Maxstar 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.

Turn power on.

Select process: Lift-Arc TIG, Stick, or 6010 Stick.

Set amperage.

Then weld! It's as easy as 1, 2, 3.

Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

With Miller's Adaptive Hot Start technology, you no longer have to worry about those difficult-to-strike electrodes.

With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.

With a built-in gas solenoid, the Maxstar 161 eliminates the need for a bulky TIG torch with a gas valve.

Allows users to weld thinner materials than other machines in this category.

Specifications

Brand	Miller Electric
Applicable Material	Stainless Steel, Steel
Frequency	50 Hz, 60 Hz
Overall Depth	13-1/2 in
Overall Height	10.3 in
Overall Width	5.6 in
Phase	Single-Phase
Remote Connection Type	Dinse
Stick Welding Maximum Output Current	160 A, 90 A
Stick Welding Minimum Output Current	20 A
Voltage	120 V, 240 V
MFG	907710
Power Cord Length	6-1/2 ft
Subcategory	Welding Equipment
TIG Welding Maximum Output Current	160 A
TIG Welding Minimum Output Current	5 A

Brand: Miller Electric
Applicable Material: Stainless Steel, Steel
Frequency: 50 Hz, 60 Hz
Overall Depth: 13-1/2 in
Overall Height: 10.3 in
Overall Width: 5.6 in
Phase: Single-Phase
Remote Connection Type: Dinse
Stick Welding Maximum Output Current: 160 A, 90 A
Stick Welding Minimum Output Current: 20 A
Voltage: 120 V, 240 V
MFG: 907710
Power Cord Length: 6-1/2 ft
Subcategory: Welding Equipment
TIG Welding Maximum Output Current: 160 A
TIG Welding Minimum Output Current: 5 A
