Miller Electric Multimatic 220 AC/DC 110-240V Welder

Linde Part #: MIL907757 Manufacturer's Part #:907757  /

How do I buy this?

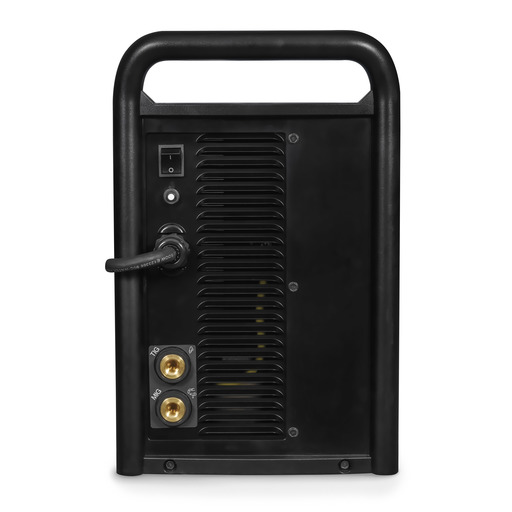

Multimatic 220 AC/DC Multiprocess Welder

The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

What's Included

  • Multimatic 220 AC/DC
  • 6.5 ft (2 m) power cord and MVP adapter plugs for 120V and 240V
  • 10 ft MDX-100 MIG Welding Gun
  • 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
  • 12.5 ft (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25mm Dinse-style connector
  • RFCS-14 HD foot control with 20 ft (6 m) cord
  • 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
  • Two Argon and AR/CO2 mix regulator/flow gauge with hoses
  • Spool of Hobart .030 in (0.8 mm) solid wire
  • Two contact tips for .030 in (0.8 mm) wire
  • Quick Select drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
  • AK2C TIG torch accessory kit
  • Material thickness gauge #229895
  • Hook-and-loop cord wraps


  • All in One Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
  • QuickTech
    • Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time.
    • Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes.
    • Automatically recalls the settings from the last process used.
  • Multi-Voltage Plug (MVP) Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
  • Auto-Set Elite Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
  • Pro-Set Feature Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
  • 14-Pin Controlled Operator Alternatives The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
  • Weighing Only 56 Pounds The Multimatic 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.

Not Included

  • Safety equipment
  • Spool gun for aluminum MIG welding
  • Shielding gas
Brand Miller Electric
MIG Welding Maximum Output Current 230 A
For Maximum Material Thickness 3/8 in
For Minimum Material Thickness 24 ga
For Wire Type Flux-Cored
Maximum Wire Diameter 0.035 in
Minimum Wire Diameter 0.03 in
Overall Depth 21.5 in
Overall Height 17.5 in
Overall Width 11.25 in
Remote Connection Type 14-Pin
Stick Welding Maximum Output Current 200 A
Stick Welding Minimum Output Current 30 A
Voltage 120 V, 240 V
Maximum Wire Feed Speed 600 in/min
MFG 907757
MIG Welding Minimum Output Current 30 A
Minimum Wire Feed Speed 60 in/min
Power Cord Length 6.5 ft
Standards CSA
Subcategory Welding Equipment
TIG Welding Maximum Output Current 210 A
TIG Welding Minimum Output Current 20 A
UNSPSC 23271400
