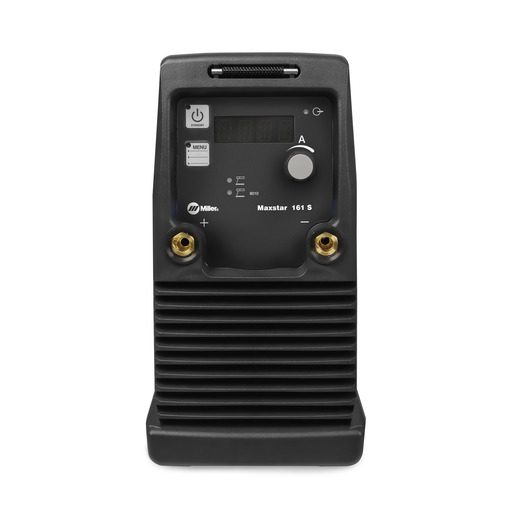

Miller Electric Maxstar 161 S 120-240 V, X-Case, Stick Package

Linde Part #: MIL907709001 Manufacturer's Part #:907709001  /

How do I buy this?
Miller Electric Maxstar 161 S 120-240 V, X-Case, Stick Package

Best-of-class - provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.

What's Included

  • Maxstar 161 S
  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V
  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
  • Adjustable handle/shoulder strap
  • Protective Miller X-Case (301429)


  • Superior Stick Arc Performance Even on the difficult-to-run electrodes like E6010
  • Compact Design Allows for Great Portability Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based Stick machine can be taken from location to locations
  • No More "Sticky" Electrodes With Miller's Adaptive Hot Start technology, you no longer have to worry about those difficult-to-strike electrodes
  • Conserve Your Electrodes With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode
  • Use on 120 AND 240 Volt Input Power Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.


  • Weldable Materials Steel, Stainless Steel
  • Input Voltage 110/115/120 V; 220/230/240 V
  • Input Phase 1-Phase
  • Input Hz 50/60 Hz
  • Current Type DC
  • Weld Output CC
  • Warranty 3 Years
Brand Miller Electric
Amperage 20 - 160 A
Applicable Material Stainless Steel, Steel
Frequency 50 Hz, 60 Hz
Overall Depth 13.5 in
Overall Height 10.3 in
Overall Width 5.6 in
Phase Single-Phase
Polarity DC
Voltage 120 - 240 V
MFG 907709001
