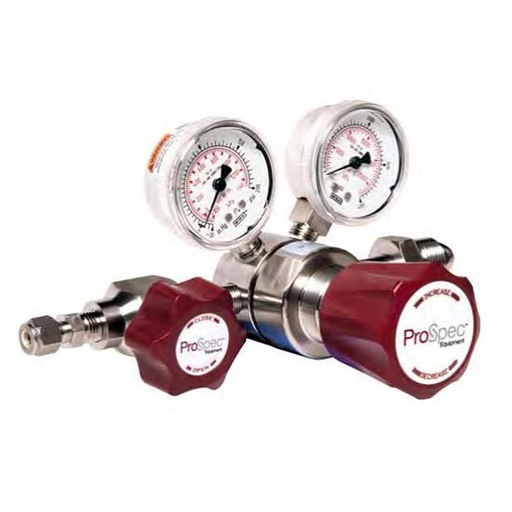

Prostar 3022 High Purity Regulator - 100 psi - CGA-580 - Diaphragm Valve 1/4 in FNPT

Linde Part #: PRS30223391580 | Manufacturer's Part #:30223391580 /

1-800-225-8247
Ship To change location
Notify me when available

Prostar 3022 High Purity Regulator - 100 psi - CGA-580 - Diaphragm Valve 1/4 in FNPT

Features

Failsafe seat performance

Enhanced corrosion resistance

No inboard diffusion

Minimal purge requirements

Smooth pressure transition

Standard assembly

Specifications

Brand	Prostar
Body Material	Stainless Steel
Inlet Connection	CGA-580
Maximum Inlet Pressure	4000 psi
Maximum Outlet Pressure	100 psi
Mounting Type	Front and Rear Panel
Number of Stages	Single
Outlet Connection	Diaphragm Valve 1/4 in FNPT
Product Type	High Purity Regulator
Diaphragm Material	Stainless Steel
MFG	30223391580

Brand: Prostar
Body Material: Stainless Steel
Inlet Connection: CGA-580
Maximum Inlet Pressure: 4000 psi
Maximum Outlet Pressure: 100 psi
Mounting Type: Front and Rear Panel
Number of Stages: Single
Outlet Connection: Diaphragm Valve 1/4 in FNPT
Product Type: High Purity Regulator
Diaphragm Material: Stainless Steel
MFG: 30223391580
