TUFFALOY Shank - 3 in | 163-2512

Linde Part #: TUF163-2512 | Manufacturer's Part #:163-2512  /

Add to List Add to List

How do I buy this?

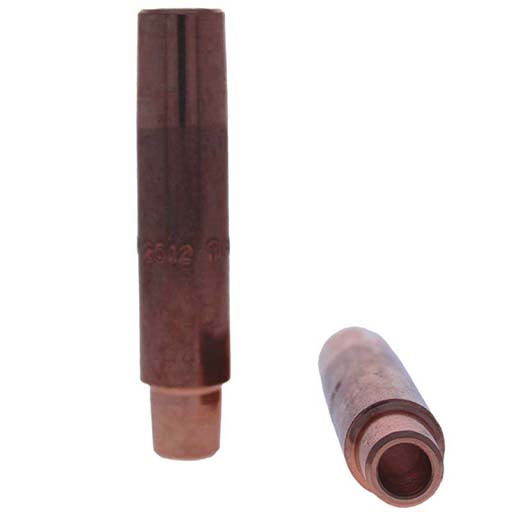

TUFFALOY Shank - 3 in

Straight shanks for female caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled. RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

Features

  • The overall length is 3.00 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The part holds a subcomponent via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The assembled length is 3.50 IN

    • Brand Tuffaloy Products
    Overall Diameter 5/8 in
    Overall Length 3 in
    Tip Diameter 3/8 in
    MFG 163-2512

    Specifications
