TUFFALOY SE Bent Tip - 2-7/8 in - 0.625 in | 170-4278

Linde Part #: TUF170-4278 Manufacturer's Part #:

170-4278

 /


How do I buy this?

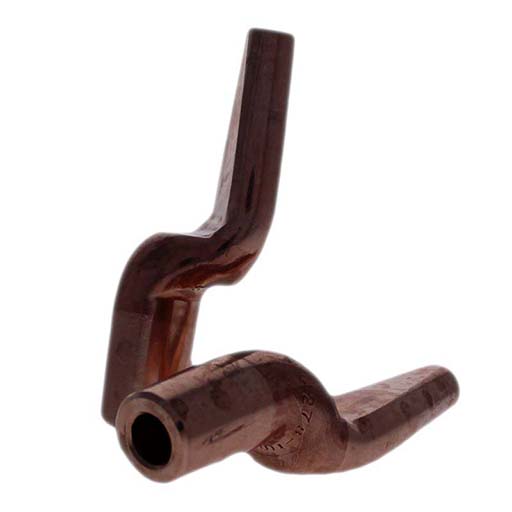

TUFFALOY SE Bent Tip - 2-7/8 in - 0.625 in

Miscellaneous electrodes are cold formed or cast electrodes with a double bend or flattened tip for welding in tight spaces such as a flange or corner. RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

Features

  • The overall length is 2.870 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.375 IN
  • The offset is 0.50 IN

  •

    TUFFALOY SE Bent Tip - 2-7/8 in - 0.625 in

    Miscellaneous electrodes are cold formed or cast electrodes with a double bend or flattened tip for welding in tight spaces such as a flange or corner. RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

    Features

  • The overall length is 2.870 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.375 IN
  • The offset is 0.50 IN

  • Brand Tuffaloy Products
    Overall Diameter 0.625 in
    Overall Length 2-7/8 in
    Tip Diameter 3/8 in
    MFG 170-4278
