SAIT Depressed Center Wheel - 5 in | 22040

Name: Linde Gas & Equipment
Address: 7000 High Grove Blvd., Burr Ridge, IL, 60527, US
Telephone: 1-800-225-8247

Linde Part #: UNI22040 | Manufacturer's Part #:22040 /

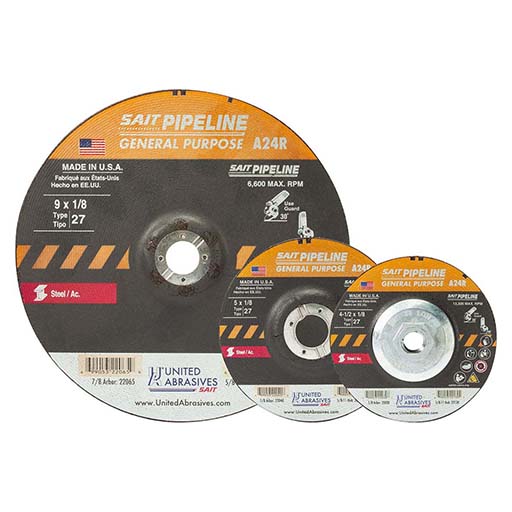

United Abrasives Type 27 - 5 X 1/8 X 7/8 A24R Pipeline Cutting Wheel

A24R Pipeline

Aluminum oxide grain
For the pipeline industry
Designed and manufactured to perform both cutting and light grinding
Long life
Reusable 5/8-11 adaptor for use on Type 1 and Type 27 reinforced wheels with a 7/8 arbor, a max. diameter of 5" and a wheel thickness of .045 to 1/8" available in accessories. Part #95055
Designed for both cutting and light grinding, eliminating the need for two separate wheels
General purpose formulation provides optimum performance over a wide range of applications
All sizes reinforced with the highest quality fiberglass for maximum safety and performance
Our unique Super-Lock Hub combines both a mechanical locking system and chemical bond providing one of the safest, vibration-free designs in the industry

Brand	United Abrasives Inc.
Abrasive Material	Aluminum Oxide
Applicable Material	Cast Iron, Ferrous Metal, Steel
Center Hole Size	7/8 in
Grade	Coarse
Grit	24
Maximum Speed	12200 RPM
Product Type	Depressed Center Wheel
Wheel Diameter	5 in
Wheel Thickness	1/8 in
Wheel Type	Type 27
Bond Type	Resinoid
Hardness Code	R
MFG	22040
Subcategory	Welding Accessories
UNSPSC	31191500

Specifications
